Modular Lifting Frames up to 13 t
Modular Lifting Frames: Versatile Solutions for Precision Lifting

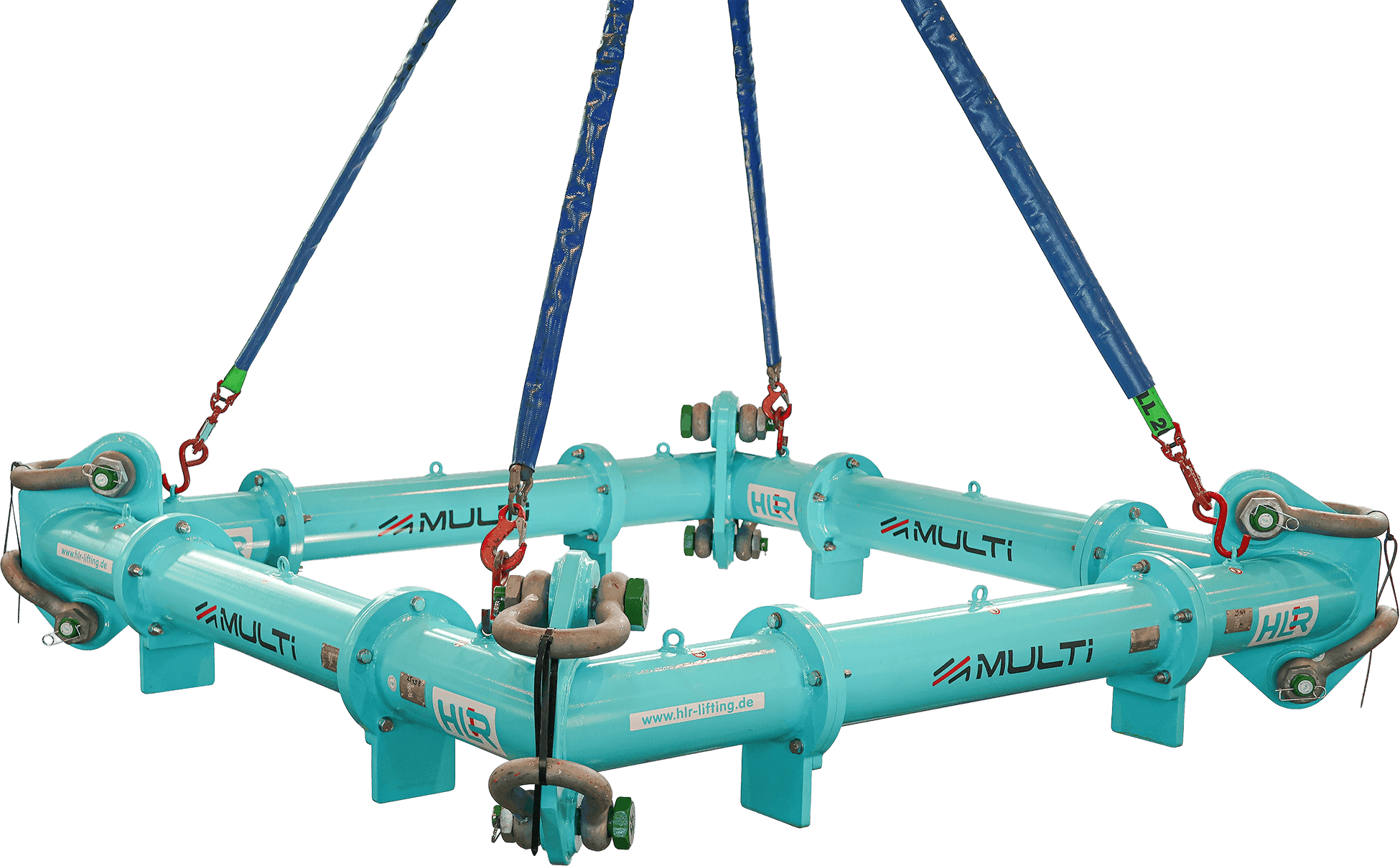

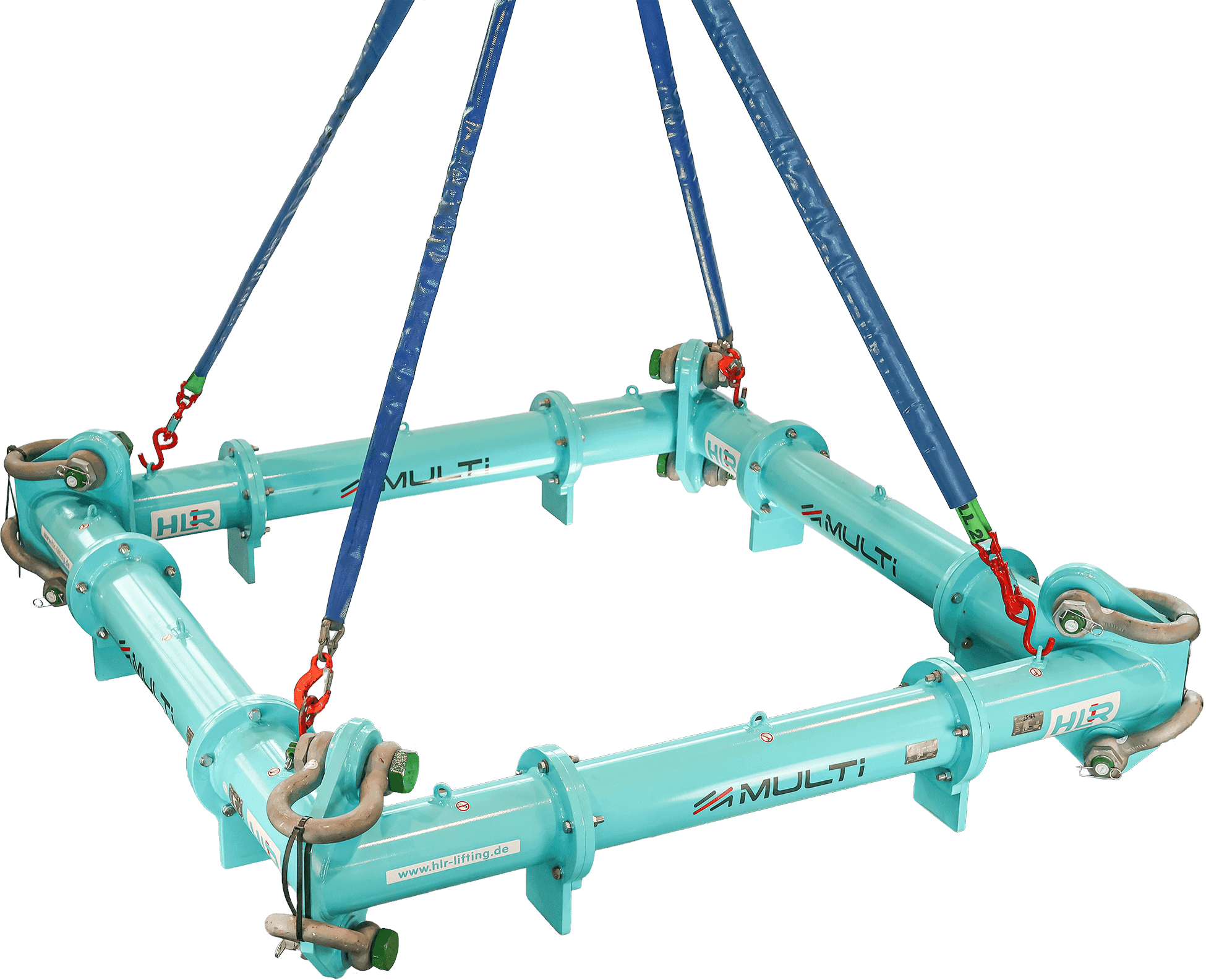

Engineered for precise four-point lifting in confined spaces, our modular lifting frames support loads of up to 13 t. The struts and corner units can be combined in various ways to create a load-bearing frame system that can be customised to the respective lifting situation.
Our adaptable lifting systems are perfect for industrial environments, maritime operations and complex construction projects. Thanks to their lightweight design, simple assembly and rapid availability, they streamline operations and deliver exceptional flexibility on site.
Rental Solutions That Grow With Your Project
Our modular lifting frames are available at any time, whether for short-term or long-term use. HLR offers rental solutions that adapt to your tasks quickly, safely and professionally, thanks to needs-based technology and sophisticated design.
Data sheet
| Length in m | Width in m | STV 45 Degrees | Weight in kg |
|---|---|---|---|
| WLL in t | with shackles | ||
| 1 | 1 | 13 | 232 |
| 2 | 1 | 7 | 268 |
| 2 | 2 | 13 | 304 |
| 3 | 1 | 4 | 296 |
| 3 | 2 | 13 | 332 |
| 3 | 3 | 13 | 360 |
| 4 | 1 | 3 | 332 |
| 4 | 2 | 7 | 368 |
| 4 | 3 | 13 | 396 |
| 4 | 4 | 13 | 432 |
| 5 | 1 | 3 | 360 |
| 5 | 2 | 4 | 396 |
| 5 | 3 | 7 | 424 |
| 5 | 4 | 13 | 460 |
| 5 | 5 | 13 | 488 |
| 6 | 1 | 3 | 382 |
| 6 | 2 | 4 | 418 |
| 6 | 3 | 7 | 446 |
| 6 | 4 | 13 | 482 |
| 6 | 5 | 13 | 510 |
| 6 | 6 | 13 | 532 |
| 6 | 5 | 13 | 510 |
| 6 | 6 | 13 | 532 |
