Modular Lifting Frames up to 25 t
Modular Lifting Frames: Precision Lifting, Engineered for Performance

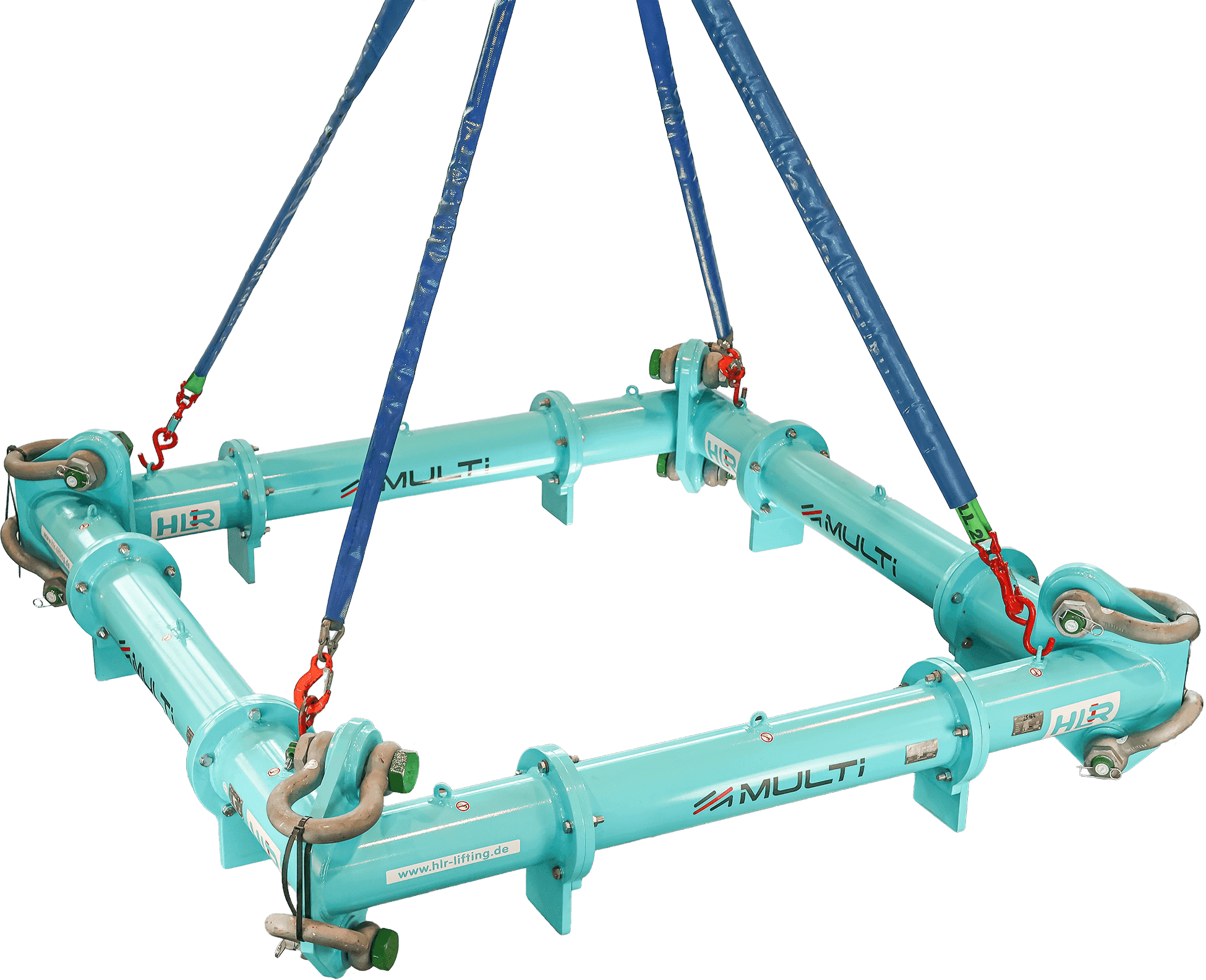

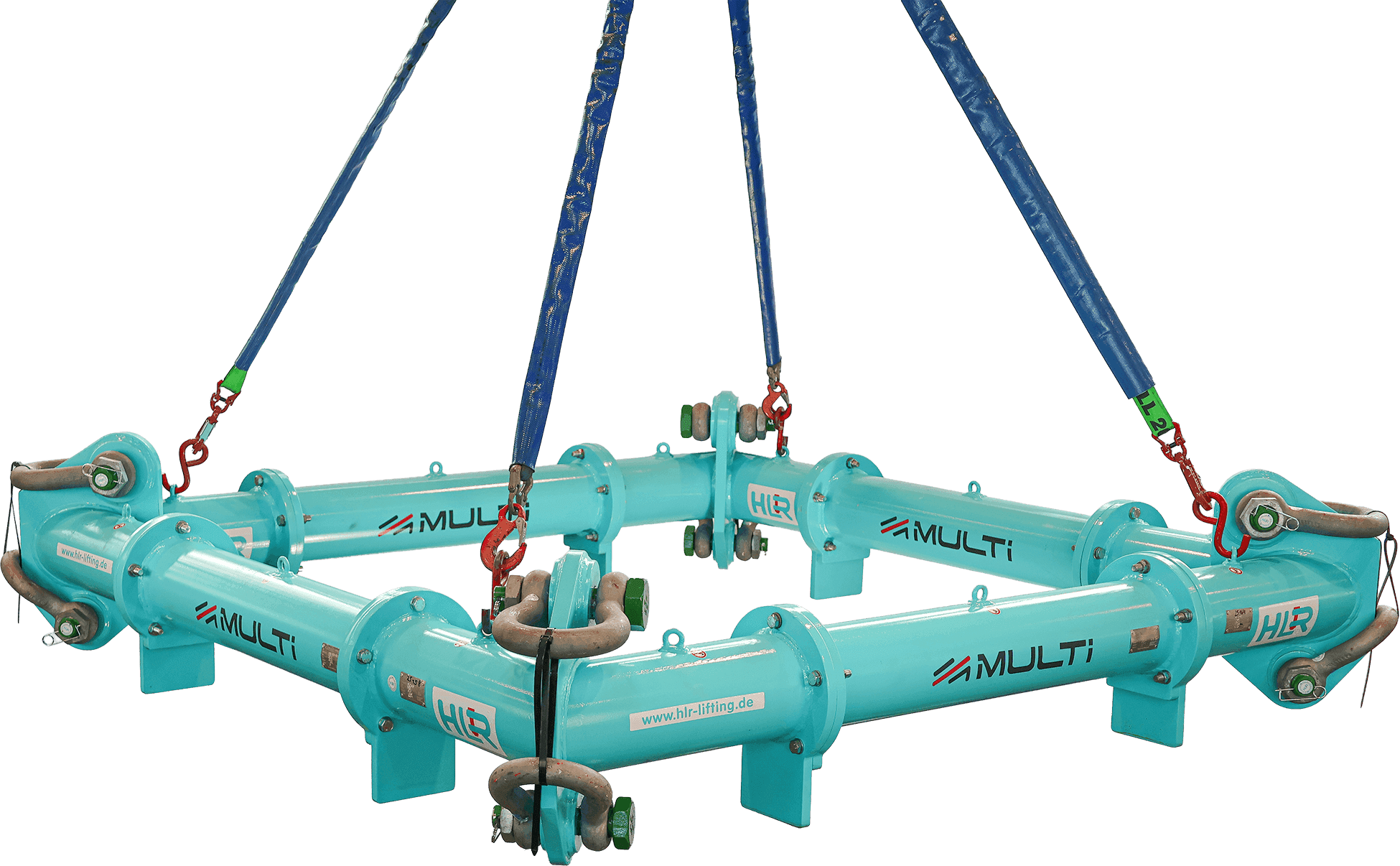

With a load-bearing capacity of up to 25 t, our modular lifting frames offer a smart solution for precise and controlled four-point lifting. The modular system, featuring robust corner units and interchangeable struts, allows for tailored frame configurations to suit your specific lifting requirements. The result: safe, balanced, and controlled load distribution.
Built for versatility, HLR’s modular lifting frames are highly adaptable and easy to install, making them the perfect fit for industrial, onshore, and offshore applications alike.
HLR’s Flexible Rental Solutions
Whether you need short-term or long-term solutions, our rental service delivers maximum efficiency, safety and adaptability. Our modular lifting frames are engineered to handle even the most complex lifting projects with precision and ease. Trust Heavy Lift Rental to provide the right lifting equipment and expertise for even the most demanding of challenges.
Data sheet
| Length in m | Width in m | STV 45 Degrees | Weight in kg |
|---|---|---|---|
| WLL in t | with shackles | ||
| 1 | 1 | 25 | 284 |
| 2 | 1 | 17 | 594 |
| 2 | 2 | 25 | 668 |
| 3 | 1 | 13 | 648 |
| 3 | 2 | 25 | 722 |
| 3 | 3 | 25 | 776 |
| 4 | 1 | 10 | 722 |
| 4 | 2 | 17 | 796 |
| 4 | 3 | 25 | 850 |
| 4 | 4 | 25 | 924 |
| 5 | 1 | 10 | 776 |
| 5 | 2 | 17 | 850 |
| 5 | 3 | 25 | 904 |
| 5 | 4 | 25 | 978 |
| 5 | 5 | 25 | 1032 |
| 6 | 1 | 10 | 850 |
| 6 | 2 | 13 | 924 |
| 6 | 3 | 17 | 978 |
| 6 | 4 | 25 | 1052 |
| 6 | 5 | 25 | 1106 |
| 6 | 6 | 25 | 1180 |
| 7 | 1 | 10 | 904 |
| 7 | 2 | 13 | 978 |
| 7 | 3 | 17 | 1032 |
| 7 | 4 | 25 | 1106 |
| 7 | 5 | 25 | 1160 |
| 7 | 6 | 25 | 1234 |
| 7 | 7 | 25 | 1288 |
