Modular Lifting Frames up to 250 t
Safe Lifting with HLR’s Modular Lifting Frames

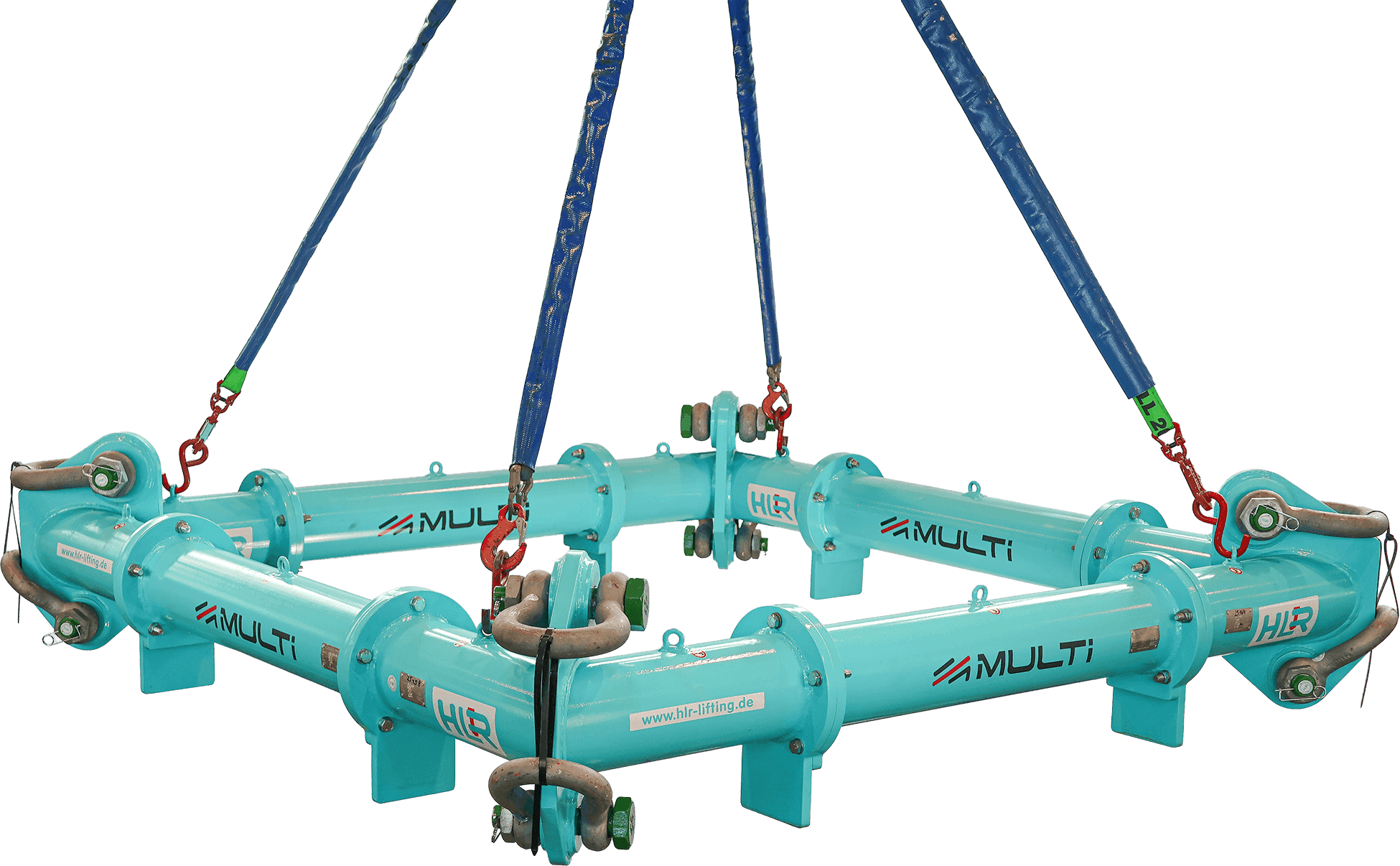

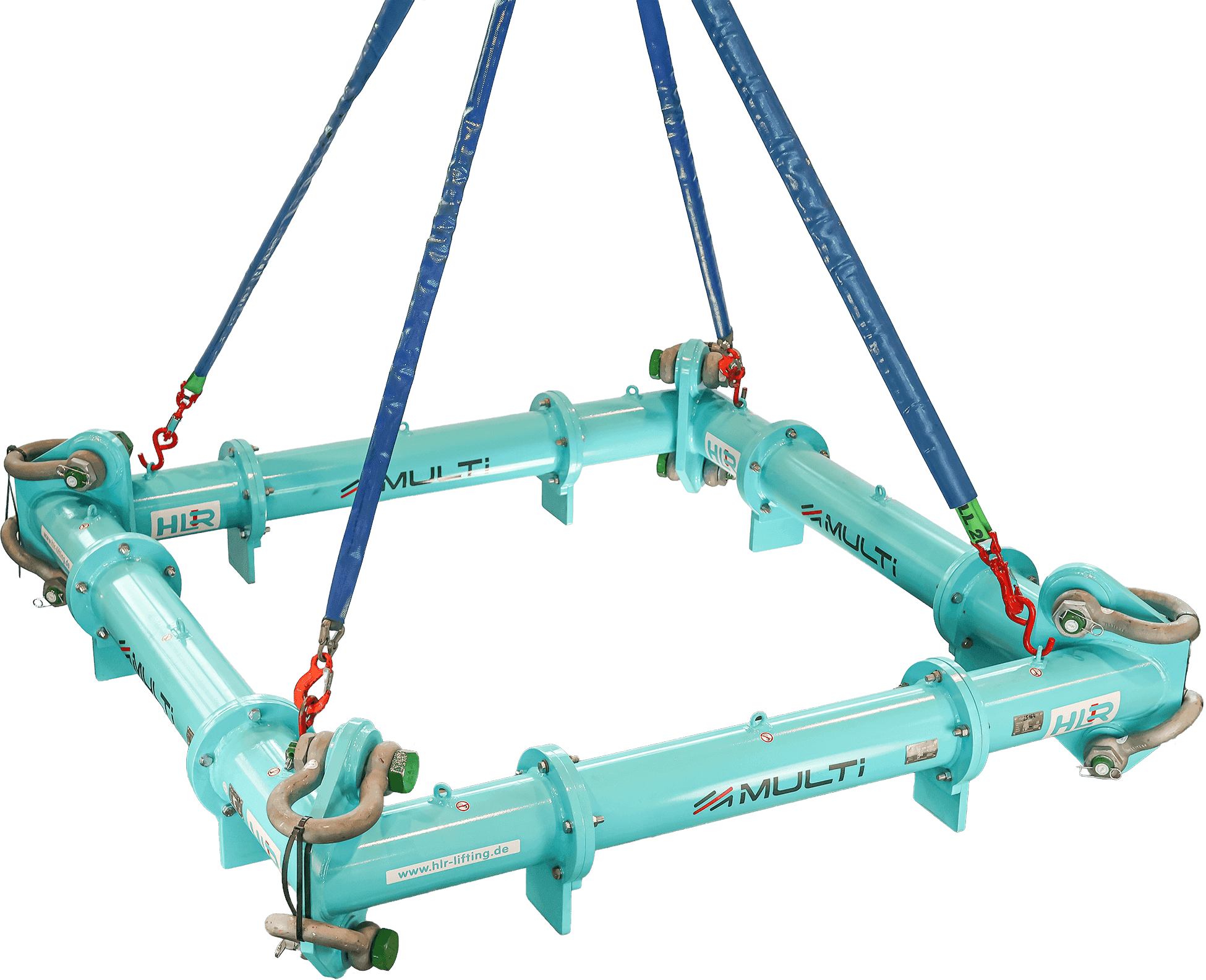

Our modular lifting frames are engineered for optimal load distribution and maximum lifting efficiency. With interchangeable struts (intermediate pieces) and robust corner units, customised frames can be quickly assembled to meet your specific lifting needs.
Versatile, transport-friendly and easy to set up, our frames are ideal for a wide range of scenarios, from offshore platforms and onshore sites to industrial production environments.
Benefit from Flexible Rental Solutions at HLR
Whether you need modular lifting frames for a short-term project or want to streamline your operations over the long haul, HLR delivers rental solutions that are intelligently designed and ready for immediate use.
Data sheet
| Length in m | Width in m | STV 45 Degrees | Weight in kg |
|---|---|---|---|
| WLL in t | with shackles | ||
| 1 | 1 | 250 | 5204 |
| 2 | 1 | 250 | 5746 |
| 2 | 2 | 250 | 6288 |
| 3 | 1 | 158 | 5970 |
| 3 | 2 | 250 | 6512 |
| 3 | 3 | 250 | 6736 |
| 4 | 1 | 137 | 6512 |
| 4 | 2 | 250 | 7054 |
| 4 | 3 | 250 | 7278 |
| 4 | 4 | 250 | 7820 |
| 5 | 1 | 120 | 6318 |
| 5 | 2 | 182 | 6860 |
| 5 | 3 | 250 | 7084 |
| 5 | 4 | 250 | 7626 |
| 5 | 5 | 250 | 7432 |
| 6 | 1 | 105 | 6860 |
| 6 | 2 | 158 | 7402 |
| 6 | 3 | 250 | 7626 |
| 6 | 4 | 250 | 8168 |
| 6 | 5 | 250 | 7974 |
| 6 | 6 | 250 | 8516 |
| 7 | 1 | 105 | 6866 |
| 7 | 2 | 137 | 7408 |
| 7 | 3 | 182 | 7632 |
| 7 | 4 | 250 | 8174 |
| 7 | 5 | 250 | 7980 |
| 7 | 6 | 250 | 8522 |
| 7 | 7 | 250 | 8528 |
| 8 | 1 | 105 | 7408 |
| 8 | 2 | 137 | 7950 |
| 8 | 3 | 182 | 8174 |
| 8 | 4 | 250 | 8716 |
| 8 | 5 | 250 | 8522 |
| 8 | 6 | 250 | 9064 |
| 8 | 7 | 250 | 9070 |
| 8 | 8 | 250 | 9612 |
| 9 | 1 | 93 | 7632 |
| 9 | 2 | 120 | 8174 |
| 9 | 3 | 158 | 8398 |
| 9 | 4 | 212 | 8940 |
| 9 | 5 | 250 | 8746 |
| 9 | 6 | 250 | 9288 |
| 9 | 7 | 250 | 9294 |
| 9 | 8 | 250 | 9836 |
| 9 | 9 | 250 | 10060 |
| 10 | 1 | 93 | 8174 |
| 10 | 2 | 120 | 8716 |
| 10 | 3 | 137 | 8940 |
| 10 | 4 | 182 | 9482 |
| 10 | 5 | 250 | 9288 |
| 10 | 6 | 250 | 9830 |
| 10 | 7 | 250 | 9836 |
| 10 | 8 | 250 | 10378 |
| 10 | 9 | 250 | 10602 |
| 10 | 10 | 250 | 11144 |
| 11 | 1 | 93 | 7980 |
| 11 | 2 | 105 | 8522 |
| 11 | 3 | 137 | 8746 |
| 11 | 4 | 158 | 9288 |
| 11 | 5 | 212 | 9084 |
| 11 | 6 | 250 | 9636 |
| 11 | 7 | 250 | 9642 |
| 11 | 8 | 250 | 10184 |
| 11 | 9 | 250 | 10408 |
| 11 | 10 | 250 | 10950 |
| 11 | 11 | 250 | 10756 |
| 12 | 1 | 93 | 8522 |
| 12 | 2 | 105 | 9064 |
| 12 | 3 | 137 | 9288 |
| 12 | 4 | 158 | 9830 |
| 12 | 5 | 182 | 9636 |
| 12 | 6 | 250 | 10178 |
| 12 | 7 | 250 | 10184 |
| 12 | 8 | 250 | 10726 |
| 12 | 9 | 250 | 10950 |
| 12 | 10 | 250 | 11492 |
| 12 | 11 | 250 | 11298 |
| 12 | 12 | 250 | 11840 |
| 13 | 1 | 93 | 8528 |
| 13 | 2 | 105 | 9070 |
| 13 | 3 | 120 | 9294 |
| 13 | 4 | 137 | 9836 |
| 13 | 5 | 182 | 9642 |
| 13 | 6 | 212 | 10184 |
| 13 | 7 | 250 | 10190 |
| 13 | 8 | 250 | 10732 |
| 13 | 9 | 250 | 10956 |
| 13 | 10 | 250 | 11498 |
| 13 | 11 | 250 | 11304 |
| 13 | 12 | 250 | 11846 |
| 13 | 13 | 250 | 11852 |
| 14 | 1 | 93 | 9070 |
| 14 | 2 | 105 | 9612 |
| 14 | 3 | 120 | 9836 |
| 14 | 4 | 137 | 10378 |
| 14 | 5 | 158 | 10184 |
| 14 | 6 | 183 | 10726 |
| 14 | 7 | 250 | 10732 |
| 14 | 8 | 250 | 11274 |
| 14 | 9 | 250 | 11498 |
| 14 | 10 | 250 | 12040 |
| 14 | 11 | 250 | 11846 |
| 14 | 12 | 250 | 12388 |
| 14 | 13 | 250 | 12394 |
| 14 | 14 | 250 | 12936 |
| 15 | 1 | 93 | 9294 |
| 15 | 2 | 105 | 9836 |
| 15 | 3 | 120 | 10060 |
| 15 | 4 | 137 | 10602 |
| 15 | 5 | 158 | 10408 |
| 15 | 6 | 182 | 10950 |
| 15 | 7 | 212 | 10956 |
| 15 | 8 | 250 | 11498 |
| 15 | 9 | 250 | 11722 |
| 15 | 10 | 250 | 12264 |
| 15 | 11 | 250 | 12070 |
| 15 | 12 | 250 | 12612 |
| 15 | 13 | 250 | 12618 |
| 15 | 14 | 250 | 13160 |
| 15 | 15 | 250 | 13384 |
| 16 | 1 | 93 | 9836 |
| 16 | 2 | 105 | 10378 |
| 16 | 3 | 120 | 10602 |
| 16 | 4 | 137 | 11144 |
| 16 | 5 | 158 | 10950 |
| 16 | 6 | 182 | 11492 |
| 16 | 7 | 212 | 11498 |
| 16 | 8 | 250 | 12040 |
| 16 | 9 | 250 | 12264 |
| 16 | 10 | 250 | 12806 |
| 16 | 11 | 250 | 12612 |
| 16 | 12 | 250 | 13154 |
| 16 | 13 | 250 | 13160 |
| 16 | 14 | 250 | 13702 |
| 16 | 15 | 250 | 13926 |
| 16 | 16 | 250 | 14468 |
