Modular Lifting Frames up to 50 t
HLR’s Modular Lifting Frames: Versatile, Durable, Made for Heavy Lifting

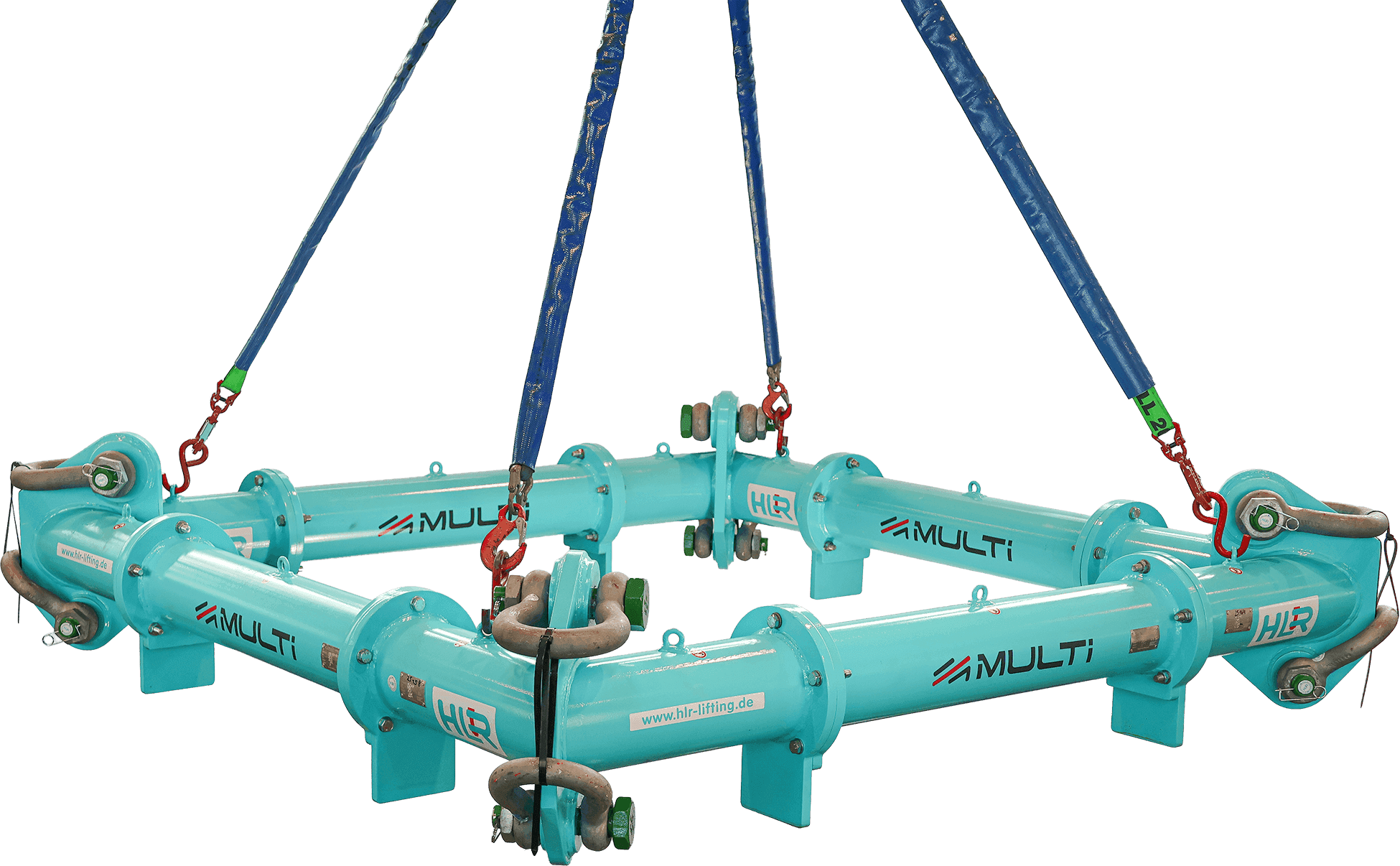

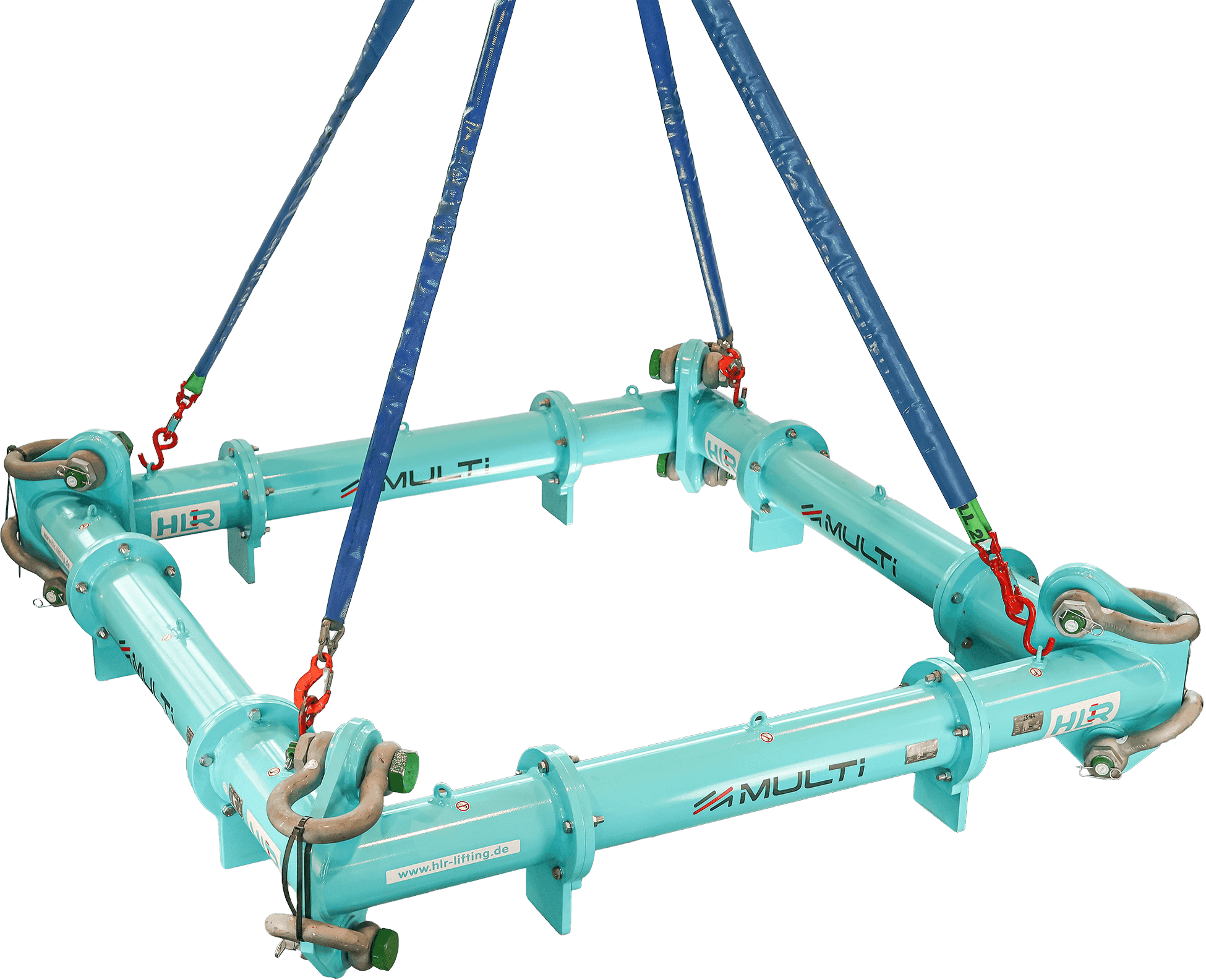

Where precision meets performance: HLR's modular lifting frames, which can bear loads of up to 50 t, provide safe, stable, and evenly distributed lifting for even the most demanding operations. The robust design combines stable corner units with freely configurable struts to adapt effortlessly to your specific lifting requirements.
Whether on construction sites, in industrial facilities, or in maritime environments, our modular systems offer space-saving transport, a quick setup and reliable operation, exactly where and when you need it.
Efficient Lifting with HLR
Whether for a short-term project or long-term use, our rental options are as flexible as your requirements. Trust HLR for customised, safe lifting equipment that delivers precision, reliability, and performance, every time.
Data sheet
| Length in m | Width in m | STV 45 Degrees | Weight in kg |
|---|---|---|---|
| WLL in t | with shackles | ||
| 1 | 1 | 50 | 948 |
| 2 | 1 | 30 | 1080 |
| 2 | 2 | 30 | 1212 |
| 3 | 1 | 40 | 1174 |
| 3 | 2 | 50 | 1306 |
| 3 | 3 | 50 | 1400 |
| 4 | 1 | 30 | 1306 |
| 4 | 2 | 50 | 1438 |
| 4 | 3 | 50 | 1532 |
| 4 | 4 | 50 | 1664 |
| 5 | 1 | 25 | 1358 |
| 5 | 2 | 40 | 1490 |
| 5 | 3 | 50 | 1584 |
| 5 | 4 | 50 | 1716 |
| 5 | 5 | 50 | 1768 |
| 6 | 1 | 25 | 1490 |
| 6 | 2 | 40 | 1622 |
| 6 | 3 | 50 | 1716 |
| 6 | 4 | 50 | 1848 |
| 6 | 5 | 50 | 1900 |
| 6 | 6 | 50 | 2032 |
| 7 | 1 | 25 | 1584 |
| 7 | 2 | 30 | 1716 |
| 7 | 3 | 50 | 1810 |
| 7 | 4 | 50 | 1942 |
| 7 | 5 | 50 | 1994 |
| 7 | 6 | 50 | 2126 |
| 7 | 7 | 50 | 2220 |
| 8 | 1 | 25 | 1716 |
| 8 | 2 | 30 | 1848 |
| 8 | 3 | 40 | 1942 |
| 8 | 4 | 50 | 2074 |
| 8 | 5 | 50 | 2126 |
| 8 | 6 | 50 | 2258 |
| 8 | 7 | 50 | 2352 |
| 8 | 8 | 50 | 2484 |
| 9 | 1 | 25 | 1768 |
| 9 | 2 | 30 | 1900 |
| 9 | 3 | 40 | 1994 |
| 9 | 4 | 50 | 2126 |
| 9 | 5 | 50 | 2178 |
| 9 | 6 | 50 | 2310 |
| 9 | 7 | 50 | 2404 |
| 9 | 8 | 50 | 2536 |
| 9 | 9 | 50 | 2588 |
