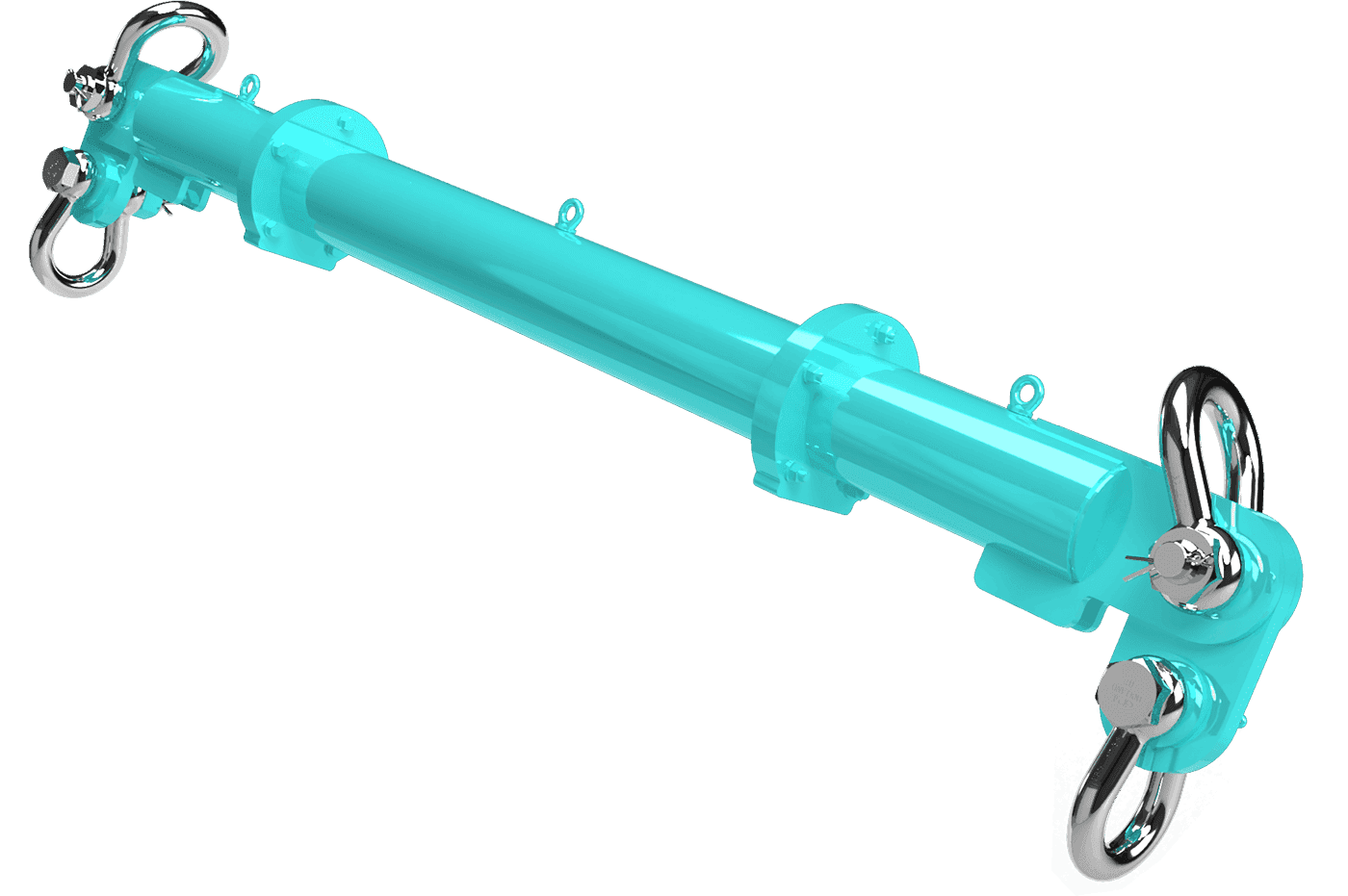

Discover the world of precise load distribution with our modular spreaders up to a load capacity of 110 t. These all-rounders offer ultimate versatility, safety and stability for demanding lifting projects.
Our spreader beams enable flexible lifting of goods in a wide range of formats and sizes, even in confined spaces.
The easy adaptation of its size through various modular elements, combined with its easy transportability, makes it the ideal choice for a wide range of lifting operations and increases your work efficiency.
Whether you are looking for long-term hire options or planning short-term projects, the HLR rental service is always ready for action. Our pioneering versatile modular spreader beams allow you to tackle even the most challenging lifting projects with ease. Rely on our expertise and innovation to fulfil your lifting requirements reliably and efficiently.
| Lenght in m | STV 45 Degrees | STV 30 Degrees | Weight in kg |
|---|---|---|---|
| WLL in t | WLL in t | with shackle | |
| 1,5 | 110 | 110 | 591,2 |
| 2 | 110 | 110 | 697,2 |
| 2,5 | 110 | 110 | 736,2 |
| 3 | 110 | 110 | 842,2 |
| 3,5 | 110 | 110 | 815,2 |
| 4 | 110 | 110 | 921,2 |
| 4,25 | 110 | 110 | 941,2 |
| 5 | 110 | 110 | 1066,2 |
| 5,5 | 110 | 110 | 1105,2 |
| 6 | 110 | 110 | 1078,2 |
| 6,5 | 110 | 110 | 1117,2 |
| 7 | 110 | 110 | 1223,2 |
| 7,5 | 110 | 110 | 1196,2 |
| 8 | 110 | 110 | 1236,2 |
| 8,5 | 110 | 110 | 1275,2 |
| 9 | 110 | 110 | 1382,2 |
| 9,5 | 110 | 110 | 1354,2 |
| 10 | 110 | 110 | 1460,2 |
| 10,5 | 110 | 110 | 1499,2 |
| 11 | 110 | 110 | 1605,2 |
| 11,5 | 100 | 110 | 1511,2 |
| 12 | 90 | 110 | 1617,2 |
| 12,5 | 85 | 110 | 1656,2 |
| 13 | 80 | 110 | 1763,2 |
| 13,5 | 75 | 110 | 1735,2 |
| 14 | 70 | 110 | 1775,2 |
| 14,5 | 60 | 110 | 1814,2 |
| 15 | 55 | 100 | 1921,2 |
| 15,5 | 50 | 95 | 1893,2 |
| 16 | 45 | 87 | 1999,2 |
| 16,5 | 40 | 85 | 2038,2 |
| 17 | 35 | 80 | 2144,2 |
| 17,5 | 30 | 73 | 2050,2 |
| 17,75 | 25 | 70 | 2136,2 |
