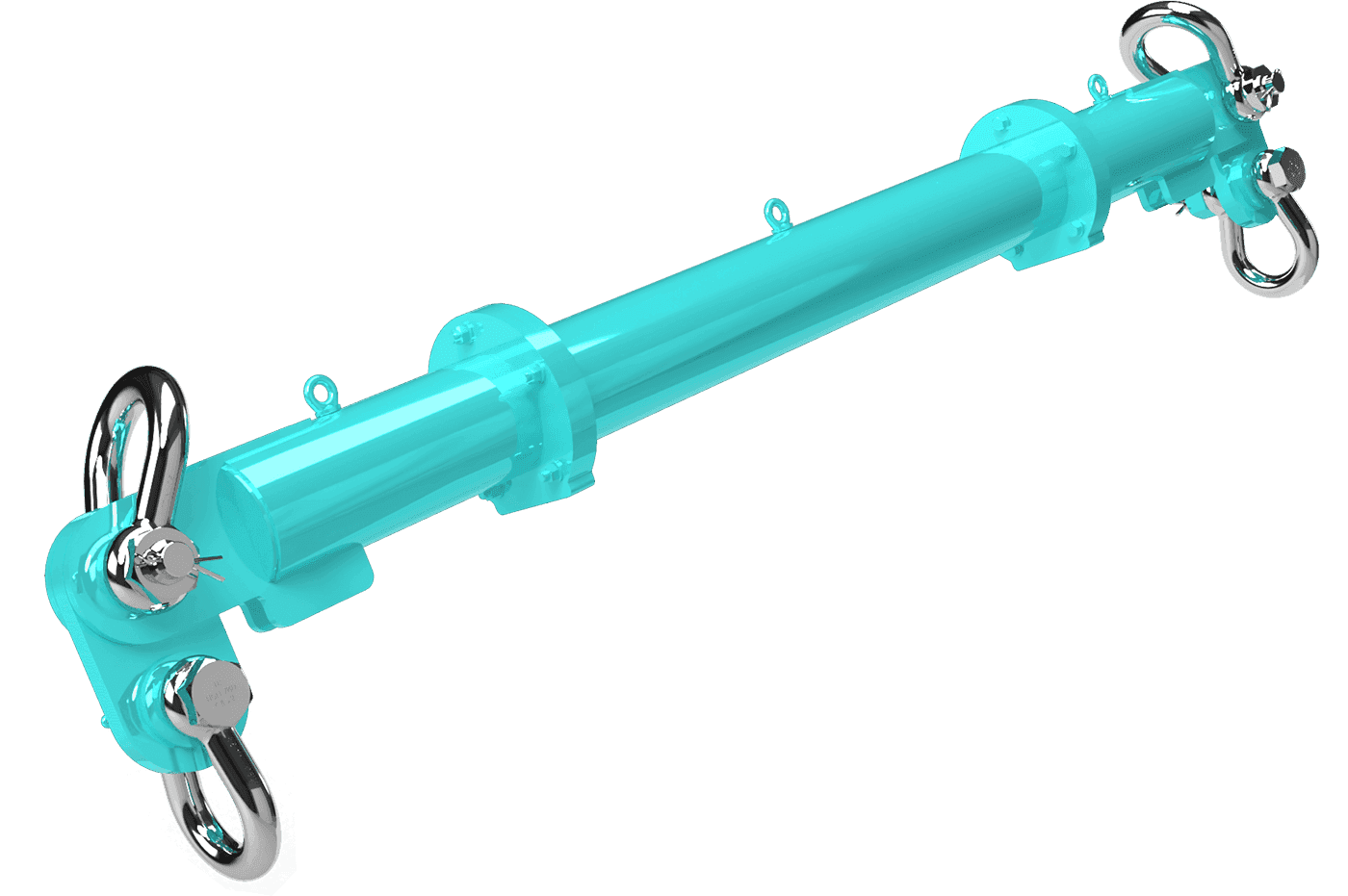

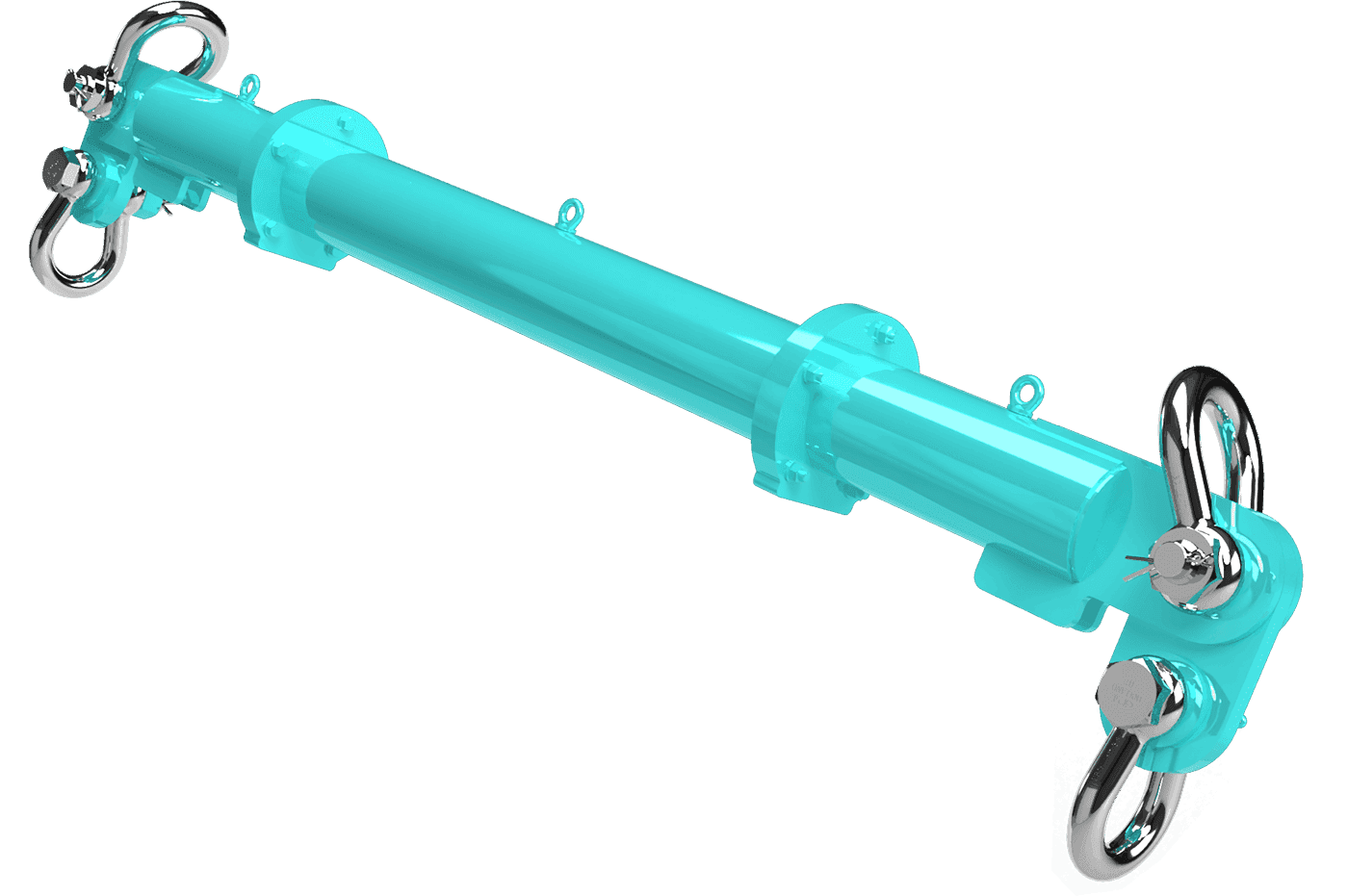

Discover our modular spreaders with an impressive load capacity of up to 25 t. These true all-rounders are the perfect solution for precise load distribution and provide you with maximum safety and stability, especially for challenging lifting projects.
Our modular spreader beams offer flexible solutions for lifting goods of all shapes and sizes. They can be easily adjusted to the load to be lifted, enabling stable and safe lifting of heavy loads even in confined spaces.
Thanks to different modular elements, our spreader beams are extremely easy to customise: Their size can be modified, making them an ideal choice for a wide variety of lifting tasks. They are also easy to transport, which further increases work efficiency.
Whether you are considering modular spreaders for short-term projects or long-term rental opportunities, they are always ready for use with our rental service. With HLR's state-of-the-art flexible spreader systems, you can master the most demanding lifting projects with ease.
| Length in m | STV 45 Degrees | STV 30 Degrees | Weight in kg |
|---|---|---|---|
| WLL in t | WLL in t | with shackle | |
| 1 | 25 | 25 | 91,46 |
| 1,5 | 25 | 25 | 115,46 |
| 2 | 25 | 25 | 128,46 |
| 2,5 | 25 | 25 | 152,46 |
| 3 | 25 | 25 | 155,46 |
| 3,5 | 25 | 25 | 179,46 |
| 4 | 25 | 25 | 192,46 |
| 4,5 | 25 | 25 | 216,46 |
| 5 | 25 | 25 | 229,46 |
| 5,5 | 25 | 25 | 232,46 |
| 6 | 23 | 25 | 245,46 |
| 6,25 | 21 | 25 | 263,46 |
| 6,5 | 19,5 | 25 | 269,46 |
| 6,75 | 18 | 25 | 276,46 |
| 7 | 16,5 | 25 | 272,46 |
| 7,25 | 15 | 25 | 290,46 |
| 7,5 | 14 | 24 | 284,46 |
| 7,75 | 13 | 22,5 | 291,46 |
| 8 | 12 | 21 | 297,46 |
| 8,25 | 11 | 19 | 315,46 |
| 8,5 | 10 | 18,5 | 322,46 |
| 8,75 | 9 | 17,5 | 328,46 |
| 9 | 8 | 16 | 324,46 |
| 9,25 | 7 | 15 | 342,46 |
