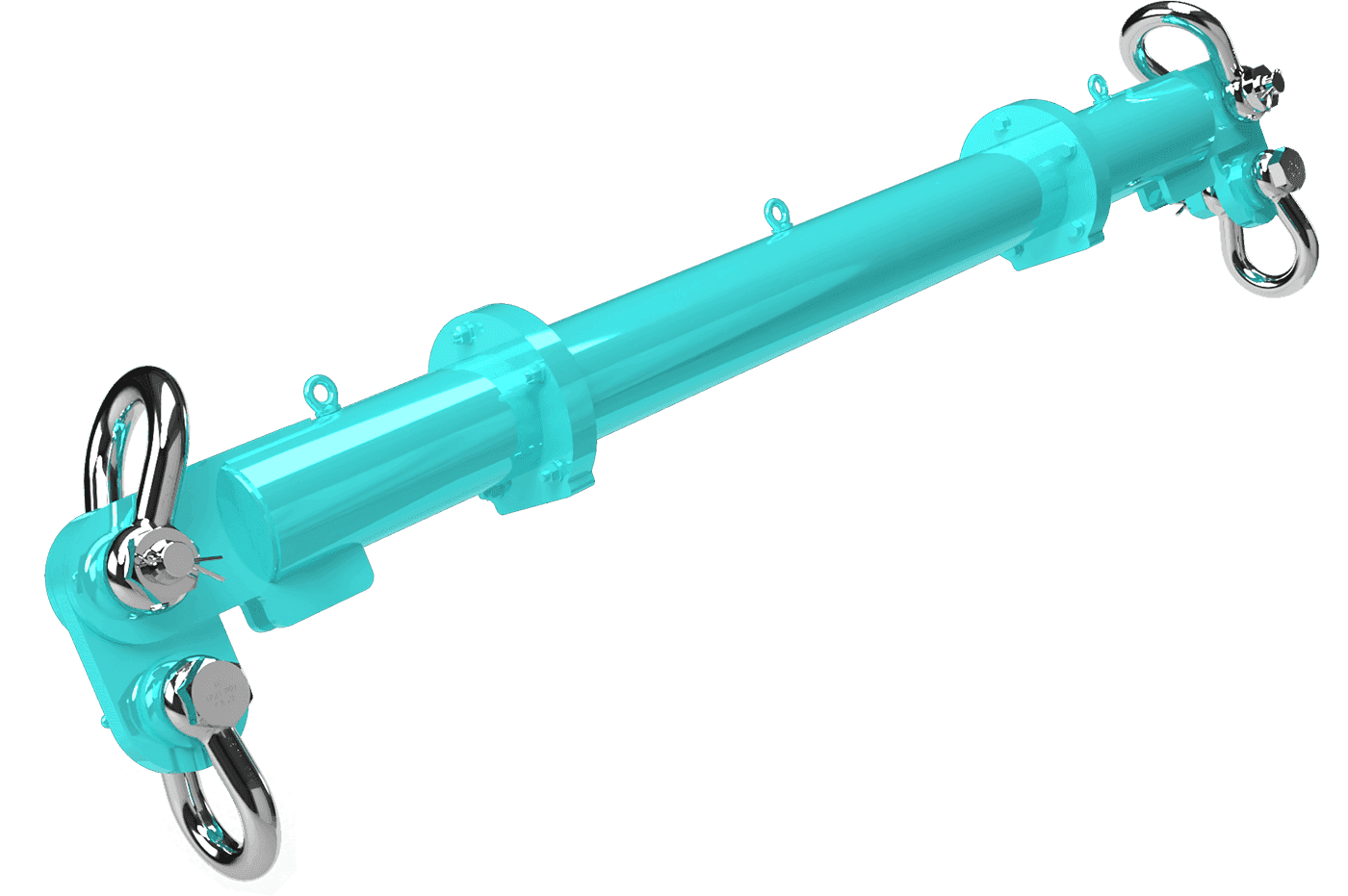

Modular Spreader Beams up to 50 t
Maximum Load Safety and Flexibility: Discover our Modular Spreader Beams
Experience ultimate safety, stability and versatility with our powerful modular spreaders, which have an impressive maximum load capacity of 50 t.
These versatile all-rounders offer an ideal solution for precise load distribution and support you with maximum stability and safety, especially for demanding lifting projects. Our flexible modular spreader beams make it possible to lift goods of different sizes and shapes, even where space is limited.
Flexible and Efficient Spreader Systems for Every Lifting Project
They can be easily customised with various modular elements: The variability of their size makes them the ideal choice for a wide range of lifting tasks. Their easy transportability also increases work efficiency.
Whether long-term rental options or short-term projects - the HLR hire service is always ready for you. With our innovative and versatile spreader systems, you can handle even the most challenging lifting projects with ease.
Data sheet
| Lenght in m | STV 45 Degrees | STV 30 Degrees | Weight in kg |
|---|---|---|---|
| WLL in t | Wll in t | with shackle | |
| 1 | 13 | 13 | 40 |
| 1,5 | 13 | 13 | 51 |
| 2 | 13 | 13 | 58 |
| 2,5 | 13 | 13 | 69 |
| 3 | 13 | 13 | 72 |
| 3,5 | 13 | 13 | 83 |
| 4 | 13 | 13 | 90 |
| 4,5 | 12.5 | 13 | 101 |
| 5 | 11.5 | 13 | 108 |
| 1 | 50 | 50 | 189,6 |
| 1,5 | 50 | 50 | 232,6 |
| 2 | 50 | 50 | 255,6 |
| 2,5 | 50 | 50 | 298,6 |
| 3 | 50 | 50 | 302,6 |
| 3,5 | 50 | 50 | 345,6 |
| 4 | 50 | 50 | 368,6 |
| 4,5 | 50 | 50 | 411,6 |
| 5 | 50 | 50 | 434,6 |
| 5,5 | 50 | 50 | 437,6 |
| 6 | 50 | 50 | 460,6 |
| 6,5 | 50 | 50 | 503,6 |
| 7 | 50 | 50 | 507,6 |
| 7,25 | 50 | 50 | 539,6 |
| 7,5 | 50 | 50 | 529,6 |
| 7,75 | 48 | 50 | 541,6 |
| 8 | 46 | 50 | 552,6 |
| 8,25 | 43 | 50 | 584,6 |
| 8,5 | 41 | 50 | 596,6 |
| 8,75 | 38 | 50 | 607,6 |
| 9 | 36 | 50 | 599,6 |
| 9,25 | 34 | 50 | 631,6 |
| 9,5 | 32 | 50 | 642,6 |
| 9,75 | 30 | 50 | 654,6 |
| 10 | 28 | 48 | 665,6 |
| 10,25 | 26 | 46 | 697,6 |
| 10,5 | 24 | 43 | 708,6 |
| 10,75 | 22 | 40 | 720,6 |
| 11 | 21 | 37 | 691,6 |
| 11,25 | 20 | 35 | 723,6 |
| 11,5 | 18 | 33 | 734,6 |
| 11,75 | 17 | 31 | 746,6 |
| 12 | 16 | 30 | 757,6 |
